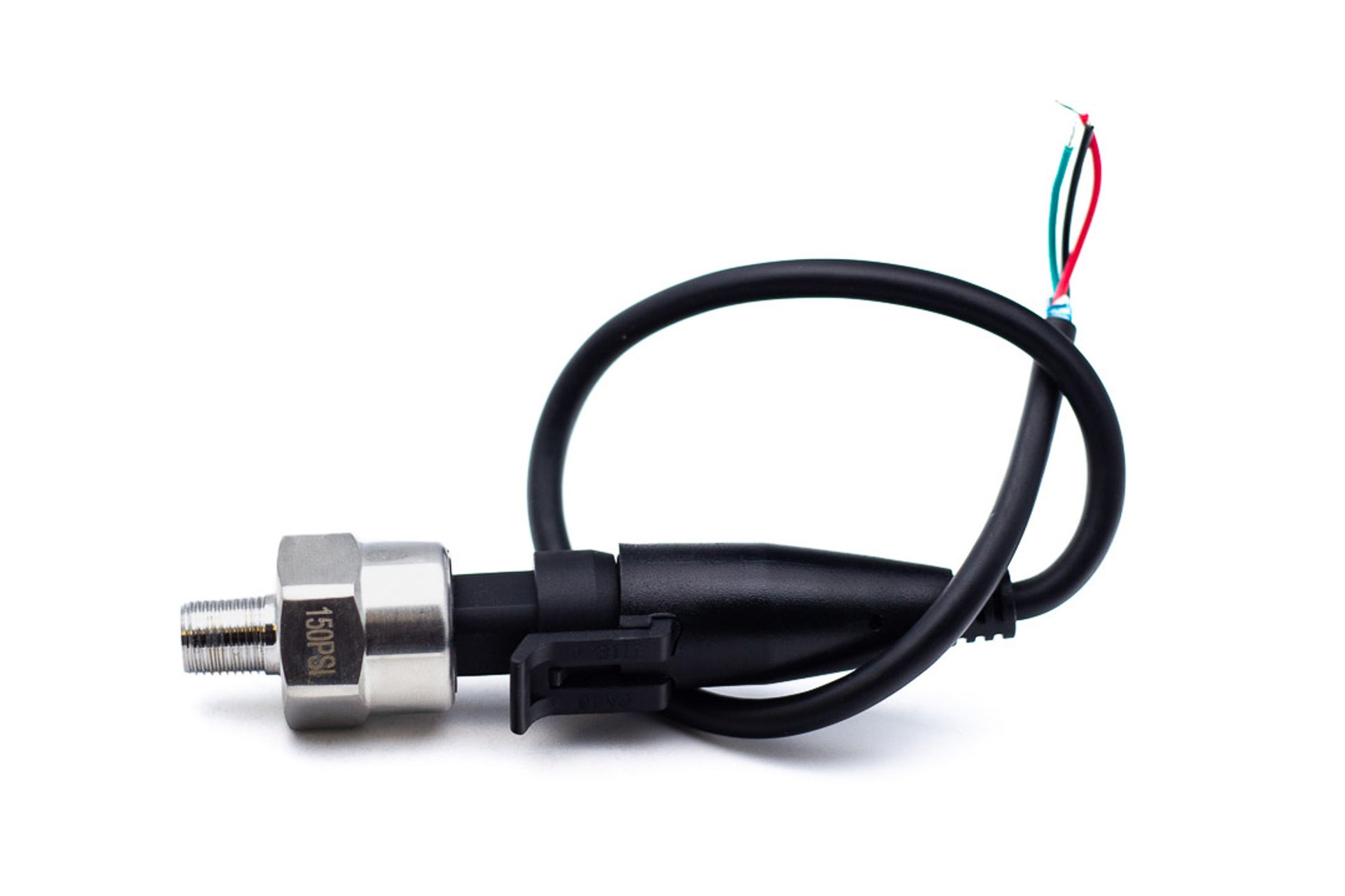

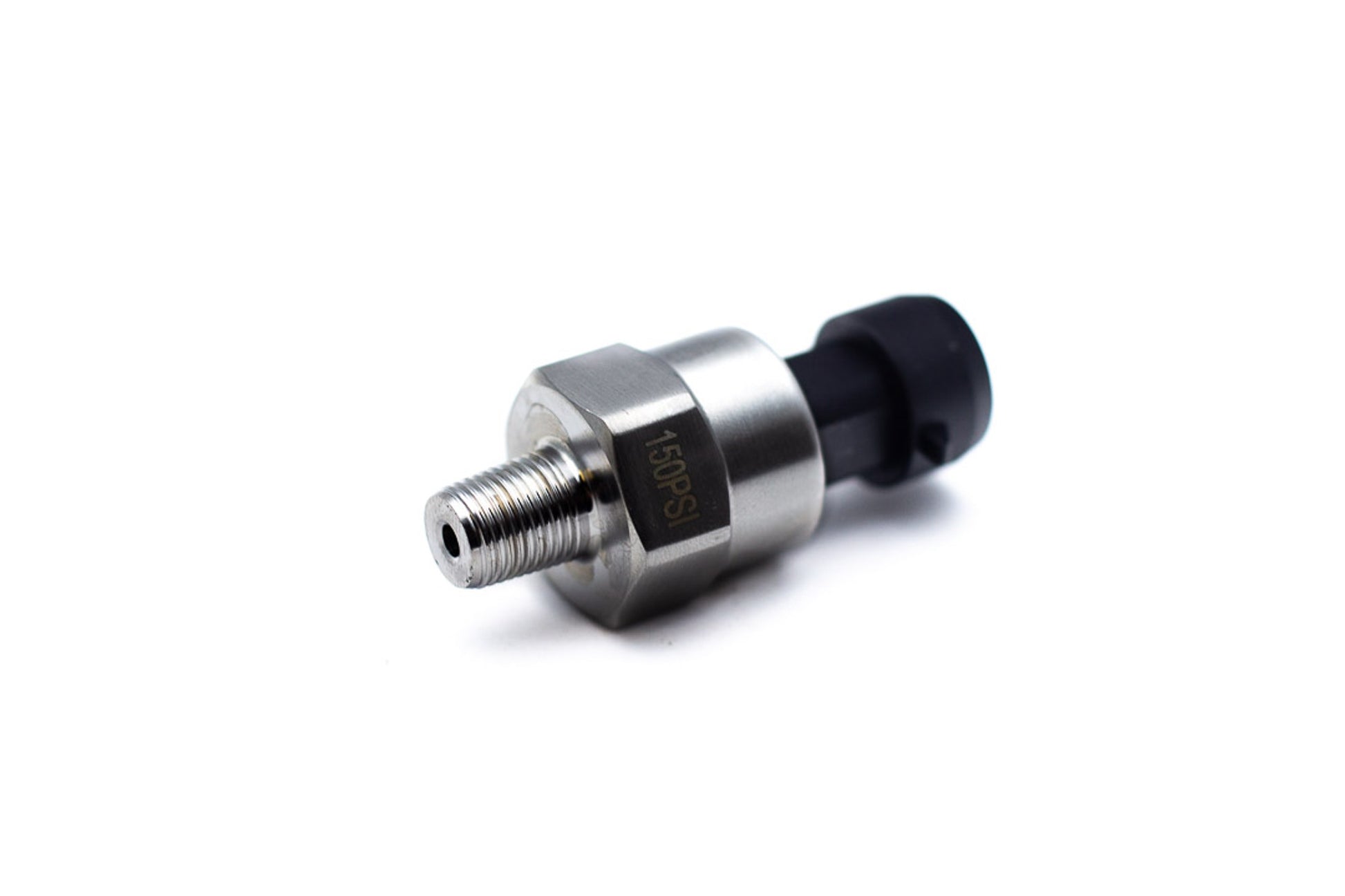

0-150 PSI Pressure Sensor (0-5V) Monitor engine oil, air ride, fuel, or coolant system pressure with this simple analog sensor. Integrates directly with P3 Gauge via universal analog input. Specifications: - 0-150 PSI range - 5 volt operation (do not use 12V power) - 1/8" NPT fitting - 10" wiring harness with 3-wire connection.

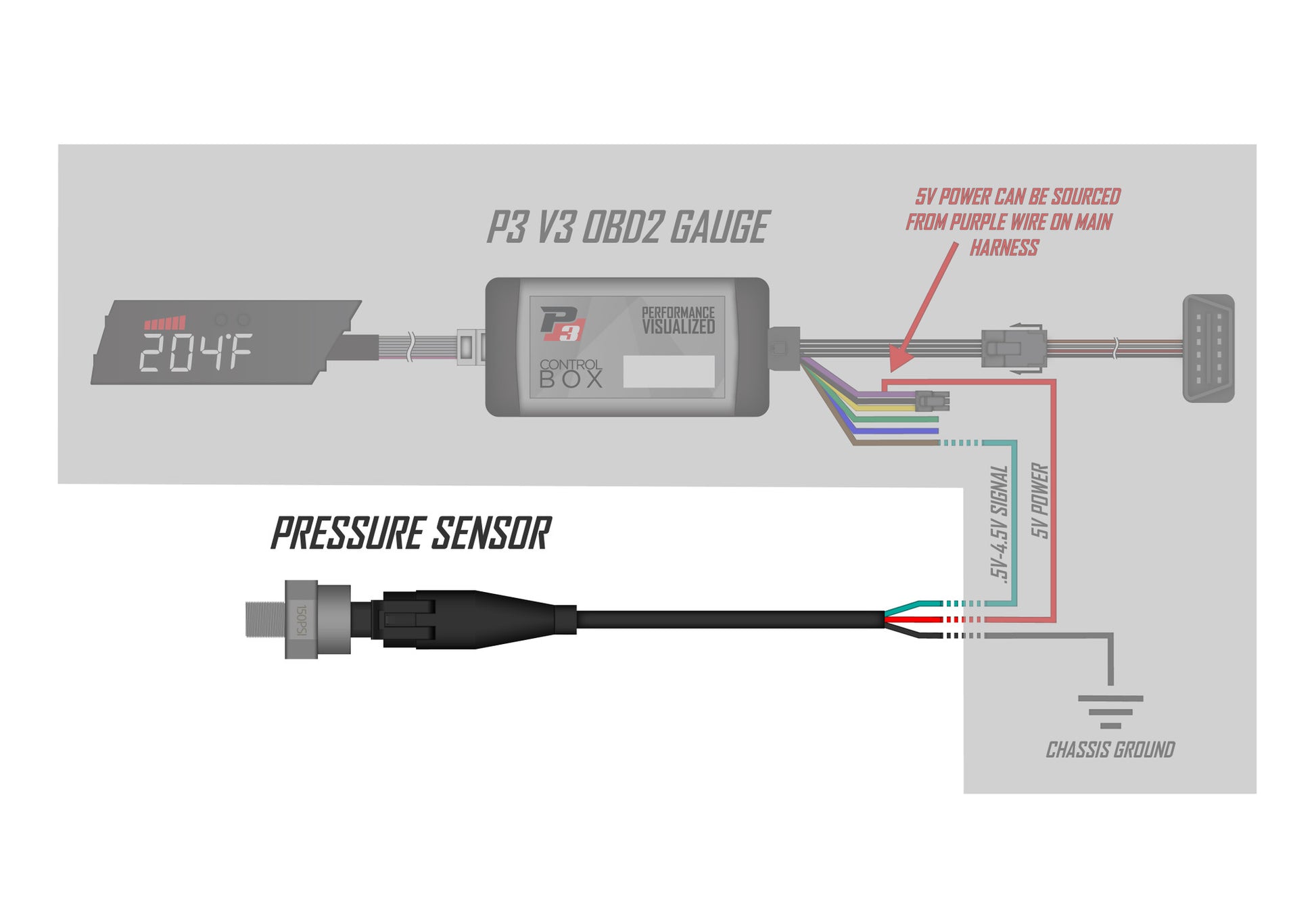

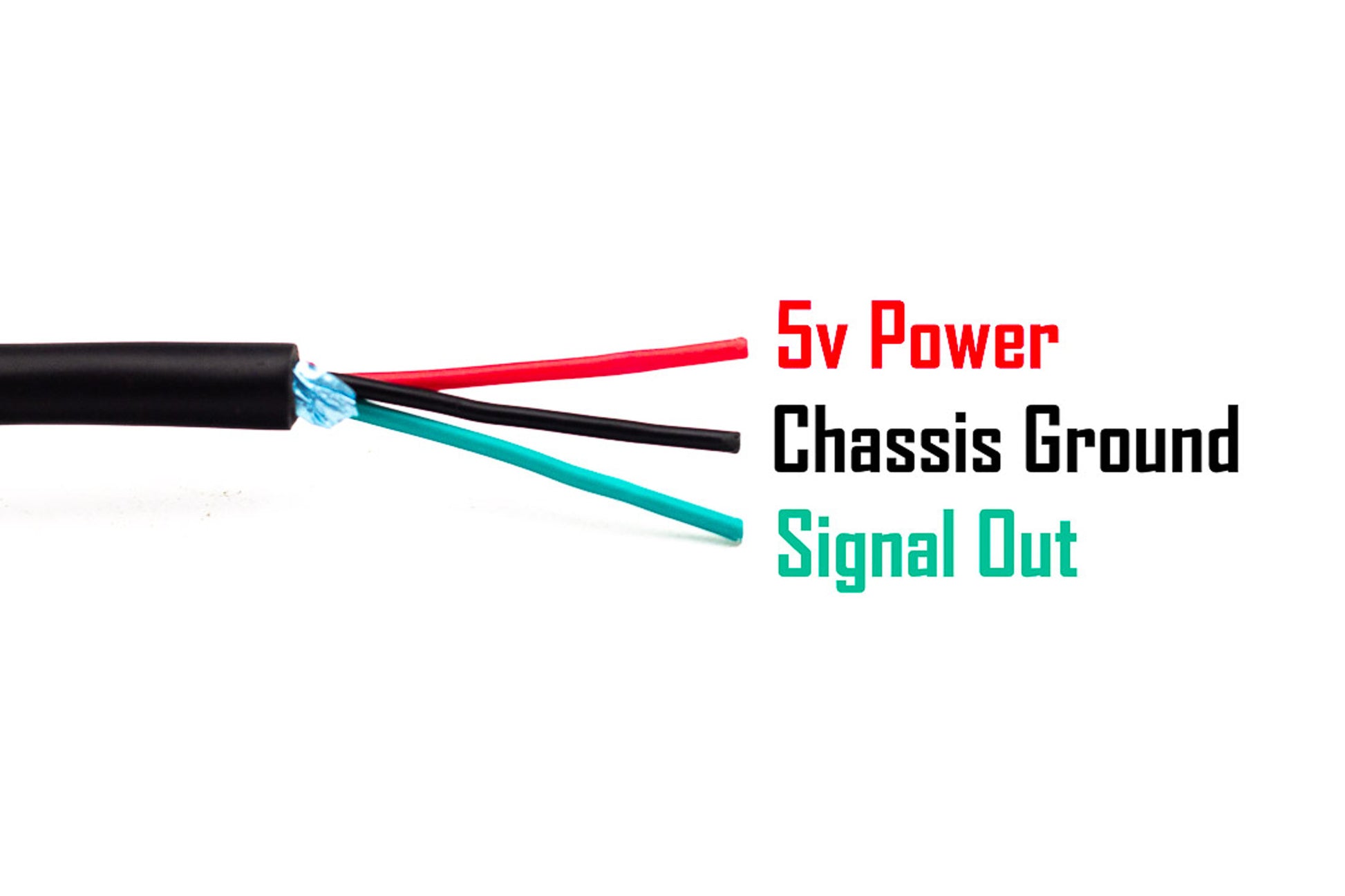

• Red - 5 volt power supply (can be sourced from purple wire on P3 harness)
• Black - Chassis ground
• Green - Signal output (routed to brown or blue wire on P3 harness)

To use with the P3 Gauge, simply select the "PS" (pressure sensor) option for one of the two universal analog inputs.
